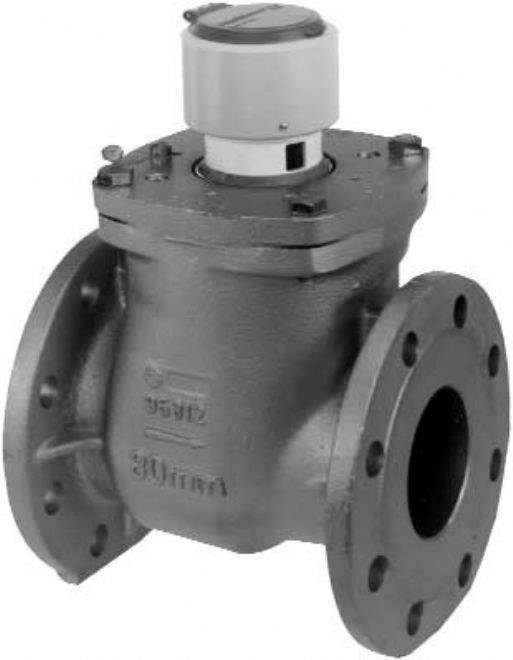

Solenvis SL260 Woltmann Bulk Flow Meter

Let us help you

For more information about this product, please complete the form below and we will call you back.

Or Call us on:

01189 342607

Product Description

• Flanges drilled to BS4504 NP16..  Others are optional
• Hermetically vacuum-sealed dry dial register
• Four possible register positions (90º spacing) without breaking calibration seal
• Provision for retro-fitting of two pulse output units
• Vanes parallel to pipe axis to give better flow characteristics. Measurement mechanism is removable in-situ
• Two measurement mechanisms to cover all sizes
• May be mounted in any position
•  Maximum working pressure of 16 bar

The H4300 is a Woltmann-type horizontal vane hot water meter particularly suited to the high and sustained flows of bulk metering to a maximum temperature of 130ºC. A magnetic drive between the measuring element and counter reduces the number of working parts in contact with water and the corrosion and heat-resistant components guarantee excellent measuring properties, reliability and a long service life.
The range is designed to incorporate sensor units for remote reading.
