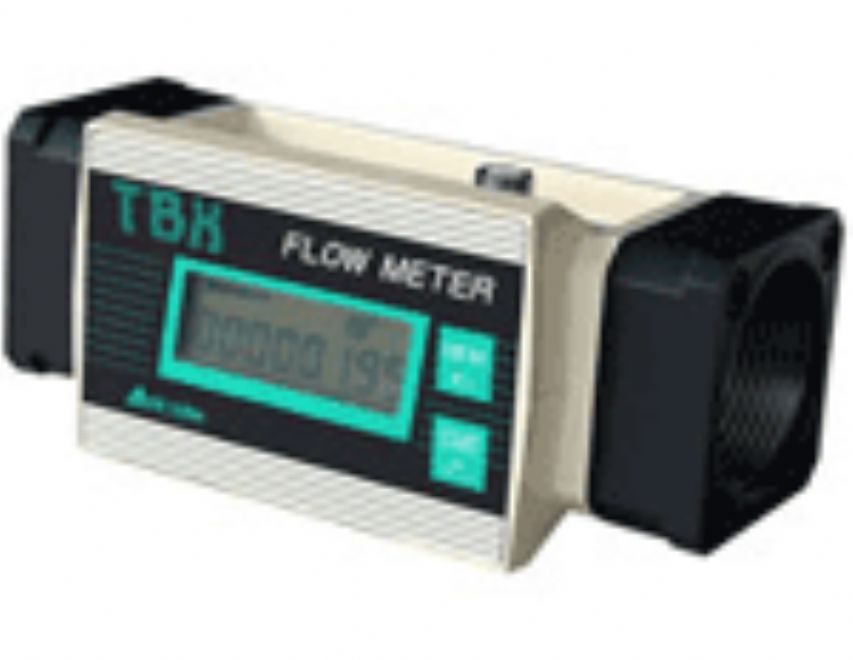

TBX low pressure drop turbine gas meters LCD display

• Inline meter takes up less space
• Self supporting in pipework
• 50mm meter same output as 3 inch diaphragm meter
• Screw connection variant - TBX - pipe sizes 3/4" to 2"
• Datasheet

Description	Fitting	Min m3/hr	Max m3/hr
TBX30L - 0.75 Low pressure drop turbine meter	3/4" screwed	1.5	30
TBX30L - 1.0 Low pressure drop turbine meter	1" screwed	1.5	30
TBX30L - 1.25 Low pressure drop turbine meter	1 1/4" screwed	1.5	30
TBX30L - 1.5 Low pressure drop turbine meter	1 1/2" screwed	1.5	30
TBX100L - 2.0 Low pressure drop turbine meter	2" screwed	5	100
TBX150F Low pressure drop turbine meter	2" flanged PN6	7	150
TBX PLUG TBX plug with 2 metre lead and 4 pin plug

TBZ low pressure drop turbine gas meters LCD display

• Inline meter takes up less space
• Self supporting in pipework
• 50mm meter same output as 3 inch diaphragm meter
• Flanged connection variant - TBZ - pipe sizes 2" to 3"
• Datasheet

Description	Fitting	Min m3/hr	Max m3/hr
TBZ300 Low pressure drop turbine meter	3" flanged PN6	15	300
TBZ150F Low pressure drop turbine meter	2" flanged PN6	7	150
TBZPULSE TBZ300 plug with 2 metre lead and 3-pin plug
